Disc type separator is settlement in a decanter centrifuges, for the separation of material (to coherent liquid separated solid particles with tiny composed of suspension or density of similar liquid emulsion, etc.). Is the use of liquid mixture (cloudy with different density and) each phase of the light and heavy dissolved in the liquid and solid phase, centrifugal field settling velocity gain different principle of separation statified or the liquid to the purpose of solid particles in the settlement. The disc type centrifuges are machine, the most widely used settlement centrifuge.



Working principle:

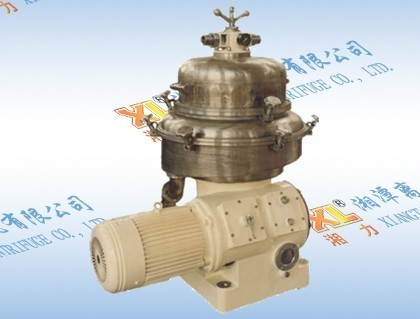

Disc type separator as principle and structure of the right.

Disc type separator is vertical centrifuge, drum packed in vertical shaft transmission device at the top, through by motor drives and rapid rotation. Drum has a group of overlap each other the disc parts - disc; Disc and leave small gap between disc. Stay separated by the drum center material incoming tube join drum. When the mixture (cloudy liquid) through the gap between when discs, under the action of solid particles in the centrifuge along the disc surface sliding away from CDS and accumulate in drum diameter biggest parts within the form slag layer, through the slag discharge institutions (artificially, continuous and clearance) eduction drum; Light phase liquid along the above-mentioned facing drum center discs from, through centrifugal motion upper drum drum liquid from the mouth; Heavy phase liquid are gathered in abuts slag layer, the intermediate place along the specially designed heavy phase liquid conduit from upper drum drum liquid from the mouth. Disc type separator can complete two kinds of operations: liquid-solid separation (suspending liquid separation), says clarify operating; Liquid-liquid separation (or liquid - liquid-solid) separated two liquids (requires different), says the proportion of separation operation.

Disc type centrifuges to its compact structure, cover an area of an area small, great capacity of production, thus characteristics in chemical, pharmaceutical, light industry, food, biological engineering and transportation departments are being widely applied.



My company development and production of dish type centrifuges to adapt to:

Solid particle diameter in 0.5 muon m -- 40 muon m, the content of solid less than 2%, solid phase deposition proportion of less than 2.0 g/cm3 solid-liquid separation;

Liquid-liquid proportion difference than 0.05 g/cm3; the separation of liquid

1 and 2 combinations of liquid - liquid-solid separation.

Mineral oils and Marine disc type centrifuges

KYDH, KYDR, KYDB posi-seal@valves type separator is mainly used in oil dehydration, de-noising, Marine fuel oil - water separation and Marine diesel engine lubricants clarification and purification. This series of dish type separator of design, manufacturing and acceptance of GB/T5745-2002 with the Marine disc type separator "requirement, and by China classification society" CSS "certification, can also be used to fuel plant fuel the clarification and purification.



The dairy disc type centrifuges

Main application in raw material of the net breast milk, milk (noise) NaiYe defatted (fat and the separation). With high separation efficiency, after the impurity net breast milk can be 2ppm, skim below degree of dilute cream separation ratio adjustable, and other functions. Also can be used for other similar material separation (if no water butter refining process and to remove the cream with concentrated acid etc.) Conformity with JB/the centrifuge T8103.3 "disc type centrifuges dairy separator".









Oil industry DBZ, DRZ posi-seal@valves type centrifuges

This machine has wide application in the animal fats the hydration degum, alkali refining soap and water off technology. Main automatic ring valve discharge type and artificially qing slag type two kinds big. Also can be applied to connect the degum, oil refining soap and water off process.







医药、化工、天然色素行业DBS、DRS系列分离机

DBS、DRS系列分离机是我公司专为医药、化工行业自主研发的产品，具有转速高、运转平稳、进出口系统全部密封、噪音小、分离效果好等优点。主要应用于天然色素的分离和提纯，如辣椒红素和辣素的分离，也应用于医药、化工行业两种互不相溶、比重不同：液-—液、液—固分离和澄清。如三梨醇的澄清、甘油的精制工艺、Vb发酵液、醋酸丁脂、墨水、抗生素、维生素等。







生物柴油行业DBSY系列分离机

DBSY、DRSY系列分离机是我公司为生物柴油行业自主研发的产品，主要应用于生物柴油的分离，也可用于其他类似物料的分离。





啤酒、饮料、果汁行业DBP、DRP系列分离机

DBP、DRP系列分离机是主要应用于啤酒、饮料、果汁行业的分离，以除去啤酒、饮料、果汁中的杂质和酵母，减少啤酒、饮料、果汁的后期发酵而确保质量，也可用于其他类似物料的分离。
